The web interface

Everything WiCAN does is set up and watched from one web page the device serves itself. Open it from any phone or computer on the same network, no app and no account needed. This chapter is a tour of its seven tabs; each gets its own chapter later in the manual.

Opening it

Where you are Address
On WiCAN's own access point http://192.168.80.1
On your network (AP+Station mode) the address your router gave WiCAN: the Status tab shows it as Station IP, the router's device list shows it under the name WiCAN_<device id>, and on most networks http://wican_<device id>.local works too

There is no login. Anyone on the same network can open the page, which is why the first thing to do on a new device is to change the access point password.

The layout

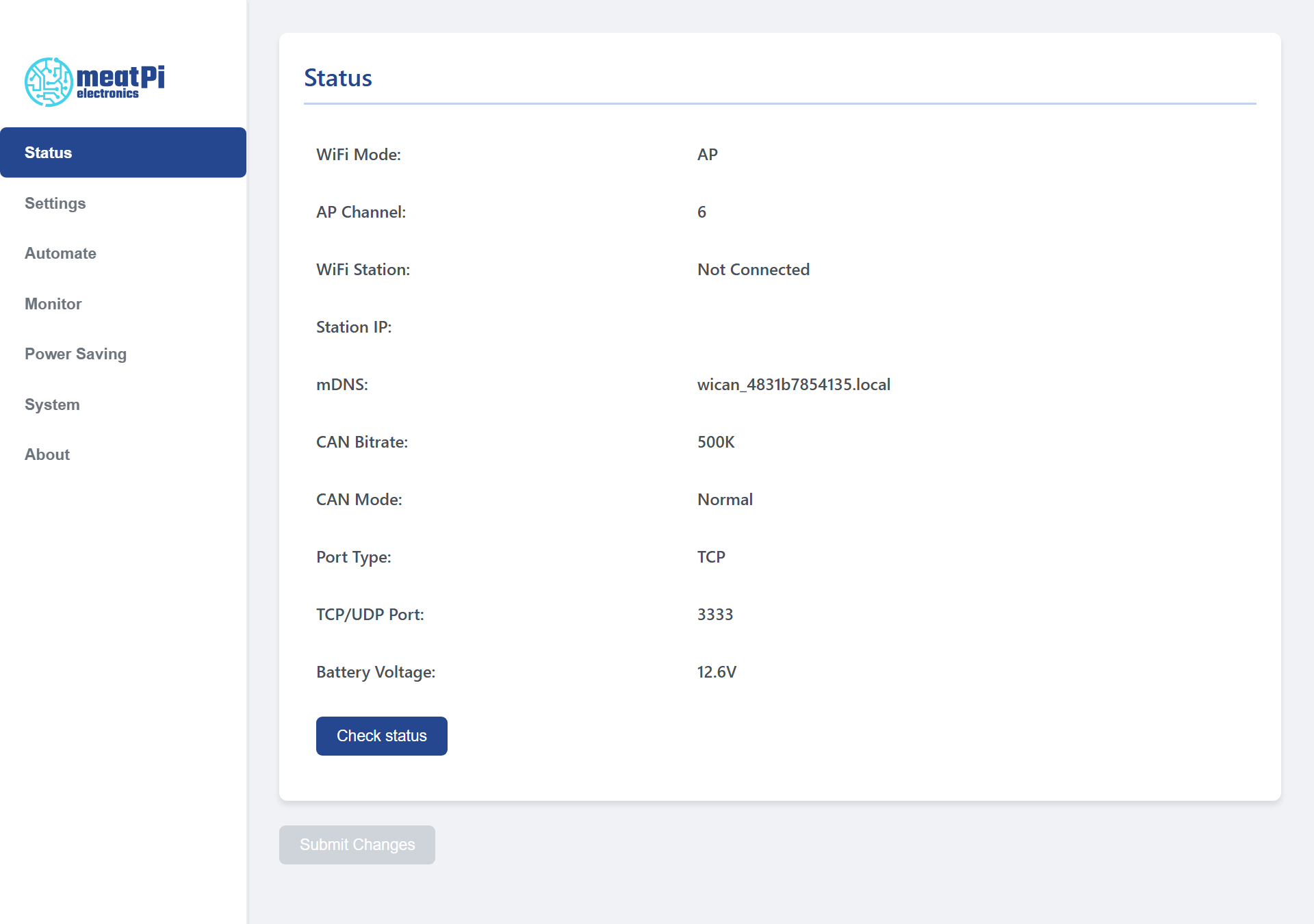

The Status tab: the sidebar with the seven tabs on the left, the status card with its values, the Submit Changes button below

The Status tab. The sidebar lists the tabs; Submit Changes sits under the content of every tab.
  • The sidebar on the left lists the seven tabs. On a phone it moves above the content.
  • The content is one card per tab, with the settings in rows.
  • Submit Changes, under the content of every tab, is grey until something on the Settings or Power Saving tab has changed and every field is valid. Pressing it saves all of those settings to the device, which restarts: the page shows Configuration saved! Rebooting... and WiCAN is back about 20 seconds later.
  • Messages appear across the top of the content: green when something was saved, red when a value is out of range (the message says which one and what the limits are).

The tabs

Tab What it is for
Status The live overview: WiFi mode and channel, whether the station is connected and its address, the mDNS name, the CAN bit rate and mode, the port type and number, the battery voltage. Check status reads them again.
Settings AP Config (mode, channel, the access point password, Auto-Disable AP), Station Config (your WiFi), CAN (bit rate, mode, port type and number, the protocol, MQTT on or off), BLE, and with MQTT enabled the MQTT card and the MQTT CAN Filter table. WiFi, Bluetooth LE, MQTT.
Automate AutoPID: the Home Assistant webhook, the user destinations (grouping, MQTT topic, cycle), standard PIDs, the vehicle-specific profile, custom PIDs. It has its own Store button. AutoPID.
Monitor A live list of the frames on the CAN bus. CAN Monitor.
Power Saving Sleep mode and the battery alert. Sleep and battery alert.
System Reboot, download and upload the configuration, firmware update. Update, Backup and restore.
About The firmware, hardware and git versions.

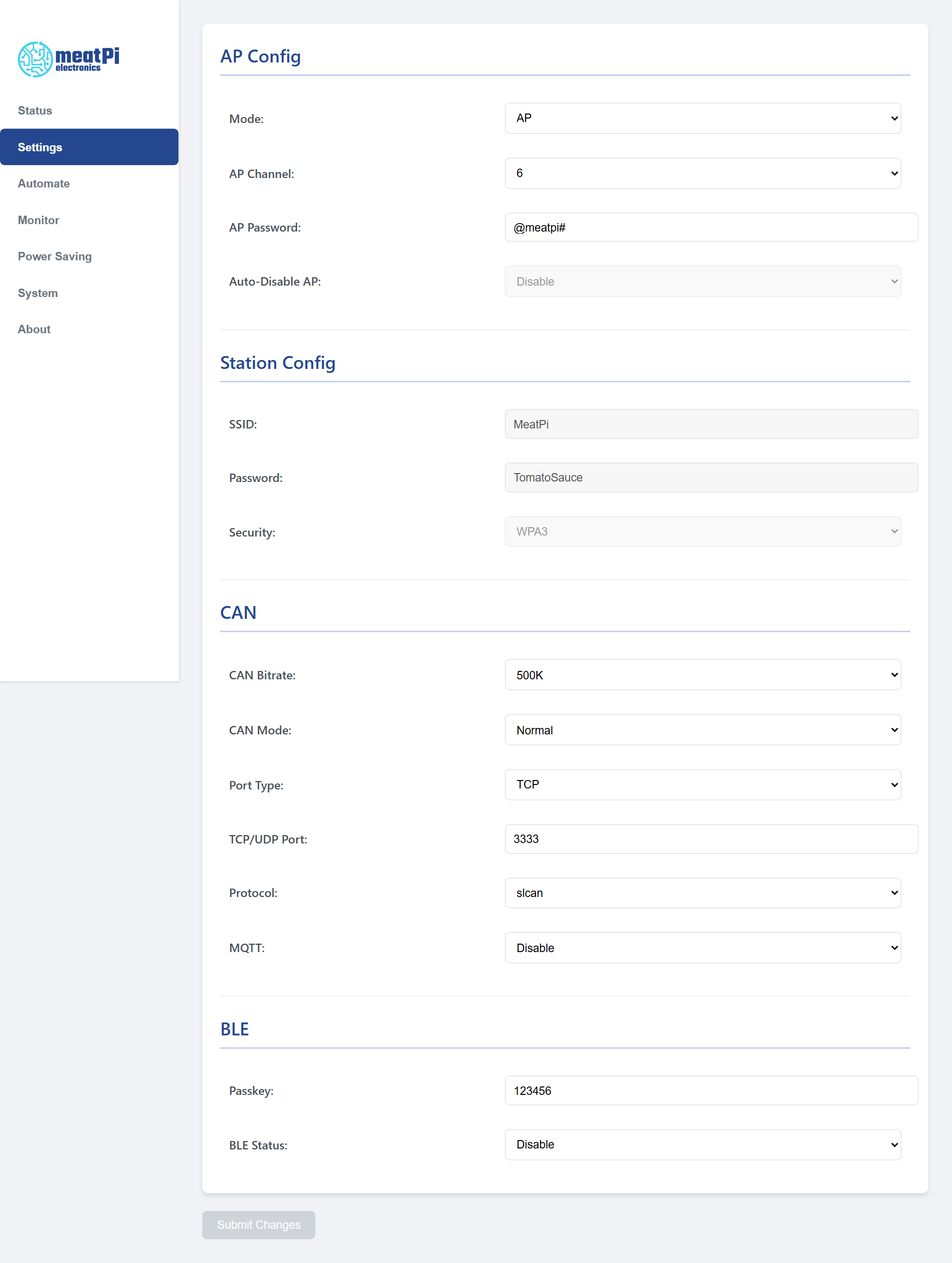

The Settings tab: the AP Config, Station Config, CAN and BLE cards

The Settings tab on a new device. The MQTT card appears below BLE once MQTT is set to Enable.

Three things to know

  • Two save buttons. Submit Changes saves the Settings and Power Saving tabs and restarts WiCAN. Store on the Automate tab writes the AutoPID tables to the device without a restart; they take effect at the next start, so press Submit Changes or System › Reboot afterwards. Submit Changes also stores the Automate tab on its way.
  • Submit Changes may be blue right after the page loads on a device with AutoPID tables, because the page re-checks the form while it fills the Automate tab. Pressing it then saves what is on the page and restarts; nothing is lost.
  • The Monitor tab takes the bus for itself. Restart WiCAN after using it, as the page reminds you, or the protocol you configured may not run as expected.
