Home Assistant

WiCAN pushes its vehicle data straight into Home Assistant: one entity per parameter, plus the device status. No MQTT broker is needed. The WiCAN integration finds the device on your network and registers its webhook on it; from then on WiCAN sends.

How it works

1. The WiCAN integration in Home Assistant discovers the device on the local network (WiCAN announces itself as _wican._tcp over mDNS), or you give it the address.
2. The integration registers its webhook address and the push interval on the device. The device remembers them across restarts.
3. On every interval WiCAN posts the parameter values, their units and classes, and its own status to that address. Home Assistant creates and updates the entities from that.

Because WiCAN sends, Home Assistant never has to poll a device that may be asleep in a parked car.

Before you start

• WiCAN on the same network as Home Assistant in AP+Station mode, see First setup.
• Protocol set to AutoPID and at least one row stored on the Automate tab, see AutoPID. The webhook only sends in AutoPID mode.
• WebHook on the Automate tab left at Enable (the factory setting).
• HACS installed in Home Assistant.

Install the integration

1. Add the WiCAN integration in HACS

   Open HACS, search for WiCAN and download it. If your HACS does not list it, add the custom repository https://github.com/jay-oswald/ha-wican of type Integration first. Use release 1.0.0 or later: firmware 4.21 is the first with the webhook, and earlier integration releases polled the device instead.

2. Restart Home Assistant

3. Add the device

   Go to Settings › Devices & services. A discovered WiCAN shows up at the top: press Configure. Otherwise Add integration, search for WiCAN, and enter the device's address: wican_<device id>.local or its IP address. Repeat for every WiCAN you own.

4. Set the push interval

   On the integration's card, Configure sets how often WiCAN pushes. The device uses 60 seconds when the integration gives it none.

What the device shows

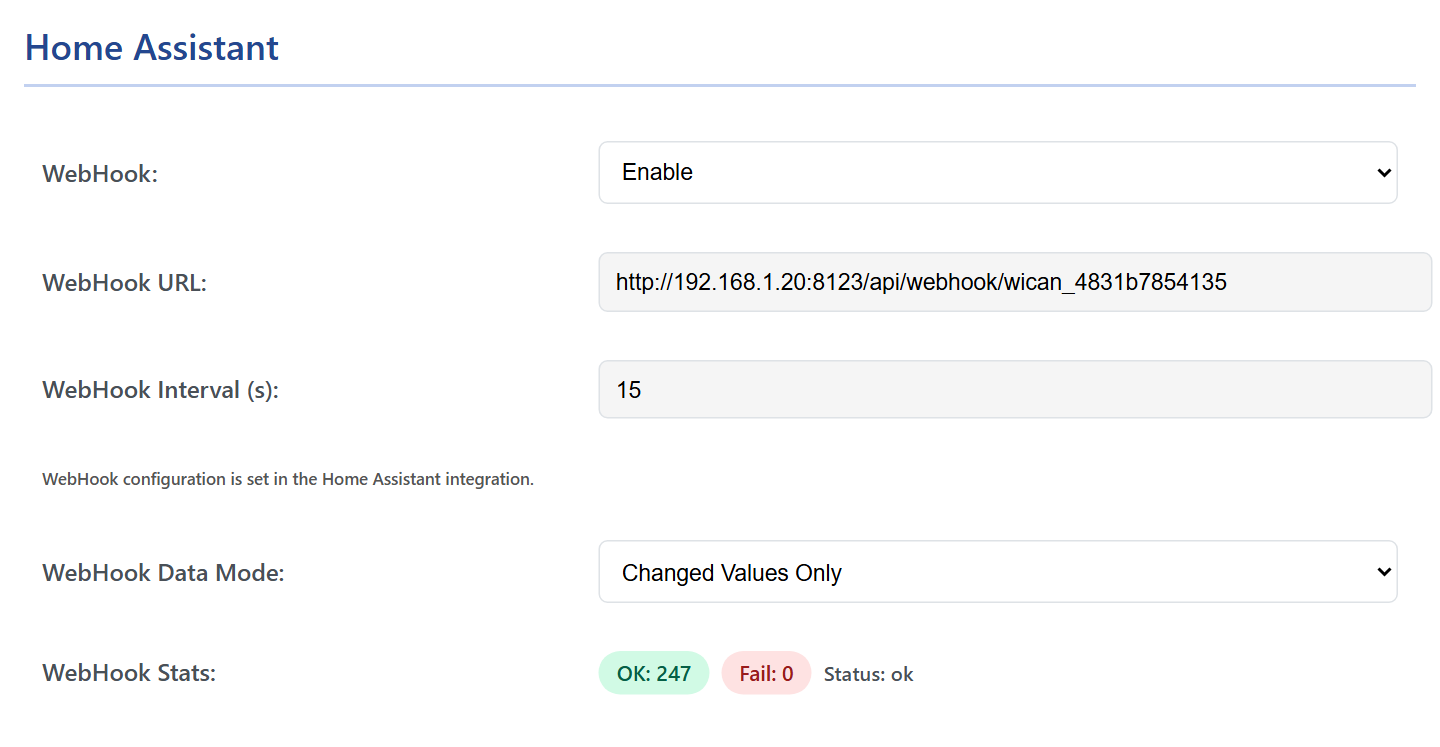

The Home Assistant card once the integration has registered: the address it gave, the interval, and how the pushes go.

Field	Meaning
WebHook	The master switch on the device. Disable stops the pushes without forgetting the registration.
WebHook URL, WebHook Interval (s)	What the integration registered. They are set from Home Assistant, not here; Not configured means no integration has registered yet.
WebHook Data Mode	Full Data sends every value on every push. Changed Values Only sends what changed since the last push, which keeps the traffic small on a car that is parked.
WebHook Stats	OK and Fail count the pushes since the last start, Status says how the last one went, and the last error, with Details, says why a push failed.

What you get

Entities	Source
One sensor per AutoPID parameter, with the unit and the class from the Automate tab	the vehicle data
Diagnostic sensors for the device: its status, the ECU connection, the battery voltage	the device status

Entities keep their last values while the car is away or asleep.

Changing things later

• Units, names and classes come from WiCAN: change them on the Automate tab (the standard PIDs have fixed ones), not in Home Assistant.
• After changing the tables (new parameters, another profile), reload the integration so it picks up the new entities. Entities for parameters that no longer exist stay until you delete them.
• Over MQTT instead. WiCAN can also publish to Home Assistant's MQTT broker, with the sensors defined by hand in Home Assistant: see MQTT. The webhook is the simpler way.

Troubleshooting

Symptom	Likely cause	What to do
The device is not discovered	WiCAN is not on the network, or mDNS does not cross your network	AP+Station and the Status tab's WiFi Station Connected; add it by its address
The card says Not configured	no integration has registered yet	add the device in Home Assistant
Fail climbs, last error STA not connected - waiting for WiFi	WiCAN lost your network	the WiFi settings; the router
Last error https not supported: use http://	the registered address starts with https://	the device posts over plain HTTP only; give the integration the http:// address of Home Assistant
Last error http=404 or http=5xx	Home Assistant answered the post with an error	reload the integration; remove and add the device so it registers afresh
Pushes are OK but the entities are empty	no rows on the Automate tab, or the ignition is off	AutoPID
Nothing at all, Status -	the protocol is not AutoPID	Settings › CAN › Protocol

The device side of the contract, the /api/webhook endpoint and the payload, is on the HTTP endpoints page.
